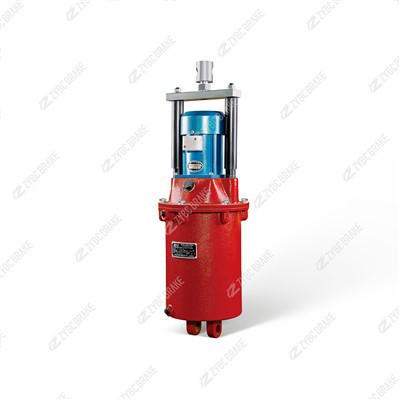

YT1-180/12 Series Electro Hydraulic Thrusters
🛠️ Cov Khoom Muag Khoom Muag: YT1-180/12 Hluav Taws Xob Hydraulic Thruster Lub YT1 series yog tsim los rau kev siv dav hauv kev lag luam, muab kev thawb- rub tawm los ntawm kev hloov hluav taws xob rau hauv hydraulic siab. Tus Qauv Zauv: YT1-180/12 Hom: Hluav Taws Xob-Hydraulic Thruster / Pusher ...
Hauj lwm lawm
🛠️ Khoom Muag Khoom: YT1-180/12 Fais Hydraulic Thruster
YT1 series yog tsim los rau kev siv dav hauv kev lag luam, muab kev thawb- rub tawm los ntawm kev hloov hluav taws xob hluav taws xob rau hauv hydraulic siab.
Qauv nab npawb: YT1-180/12
Hom: Hluav taws xob-Hydraulic Thruster / Pusher
Kev Ua: Push (Lift) ntawm Power On.
Thaum fais fab tuag, lub cev muaj zog tsav lub twj tso kua mis, tsim kom muaj hydraulic siab kom ntev lub piston pas nrig.
Thaum lub hwj chim raug txiav, lub caij nplooj ntoos hlav (lossis sab nraud load) rov qab tus pas nrig rau nws qhov qub.
Feature tseem ceeb: Integrated Design.Combines lub cev muaj zog, twj tso kua mis, thiab lub tog raj kheej nyob rau hauv ib tug compact unit.
📋 Cov Lus Qhia Tshwj Xeeb
| Parameter | Specification rau YT1-180/12 |
|---|---|
| Thrust (Pushing Force) | 1800 N |
| Stroke Length | 120 hli |
| Lub cev muaj zog | 260 W |
| Fais fab mov | AC 380V / 50Hz(3-theem) |
| Rwb thaiv tsev Class | B chav kawm |
| Qib tiv thaiv | IP54(Plua plav tiv thaiv) |
| Qhov hnyav | Kwv yees li . 32 kg |
✨ Cov yam ntxwv tseem ceeb
Compact & Lightweight:Tsim nrog ibaluminium alloy vaj tsev, ua rau nws sib zog dua li cov hlau ib txwm siv -cased qauv.
Tsawg suab nrov:Ua haujlwm nrog cov suab nrov qis dua piv rau electromagnetic actuators.
Lub neej ua haujlwm ntev:Ntachrome-plated piston pas nrigkom txo tau hnav thiab ntev lub neej ntawm cov ntsaws ruaj ruaj.
Daim ntawv thov dav:Haum rau ntau qhov chaw muaj xws li metallurgy, mining, chaw nres nkoj machinery, thiab tshuaj industries.
🏭 Ib Daim Ntawv Thov
YT1-180/12 feem ntau yog siv los tsav cov khoom siv hauv qab no:
Nres:Actuatingthaiv nres(eg, YWZ series) thiabdisc nresntawm cranes, hoists, thiab conveyors.
Valves & Rooj vag:Kev khiav hauj lwm muaj li qub, sluice rooj vag, thiab dampers.
Cov khoom siv txheej txheem:Siv nyob rau hauv cov txheej txheem uas yuav tsum tau tawm suab xws li cov khoom siv clamping ntawm cov kab sib dhos, cov tshuab ntim khoom, thiab cov ntawv luam tawm.
💡 Cov Lus Qhia Ua Haujlwm & Kev Tu
Roj Qib:Tsis tu ncua xyuas cov roj hydraulic theem hauv lub reservoir. Sau nrog cov roj tshwj xeeb (xws li DB-25 lossis YH-10) yog tias tsim nyog.
Kev xaiv cua sov:Yog tias ua haujlwm hauv ib puag ncig hauv qab no0 degree, nws raug nquahu kom nruab lub cua sov (muaj raws li cov khoom siv) kom ntseeg tau tias cov roj viscosity zoo.
Limit Switches:Yuav nruab nrog pabhloov mus nciglos muab cov lus qhia txog txoj haujlwm (piv txwv li, "Brake Open" lossis "Brake Closed" signals).
Mounting:Thaum muaj zog, xyuas kom cov mounting brackets muaj kev ruaj ntseg los tuav lub zog thawb thaum ua haujlwm.
