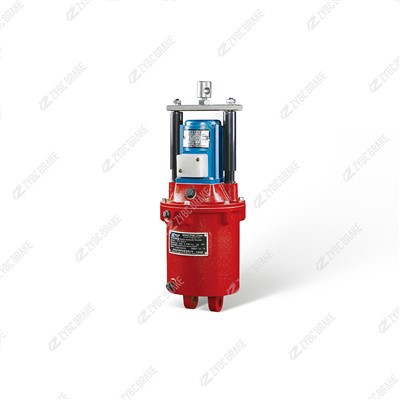

YT1 Series Electro{1}}Hydraulic Thruster YT1-18ZB/2





1. Txoj Cai Ua Haujlwm

Lub thruster sib koom ua ke peb -theem AC lub cev muaj zog, lub twj tso kua mis hydraulic, lub tog raj kheej, lub taub ntim dej, thiab piston thawb pas nrig rau hauv ib chav. Nws ua tiav cov zis tawm tawm thiab rov pib dua los ntawm "hluav taws xob-hydraulic tsav + caij nplooj ntoos hlav rov pib dua," nrog rau cov txheej txheem ua haujlwm tau muab faib ua ob theem tseem ceeb:

1.1 Thrust Output (Power-Nyob rau theem)

Thaum txuas nrog cov khoom siv hluav taws xob ntsuas (hom voltage: 380V AC), qhov ua tau - nyob rau hauv peb -theem asynchronous lub cev muaj zog pib, tsav lub twj tso kua mis sib xyaw kom tig ntawm kev kub ceev.

Lub twj tso kua mis hydraulic rub tawm los tiv thaiv- coj cov roj hydraulic (ISO VG46) los ntawm kev tsim- hauv lub tank, nias nws mus rau 8-12 MPa, thiab xa mus rau ib qho - ua haujlwm hydraulic lub tog raj kheej.

Hydraulic siab thawb lub piston thiab cov hlua txuas txuas txuas mus txuas ntxiv, tso tawm qhov ntsuas qhov ntsuas ntawm 18 kN. Lub laub pas nrig mus ncig ntawm qhov ntsuas stroke ntawm 20 hli (tus qauv lus "2" qhia tias 20 hli stroke), thiab xa cov quab yuam mus rau qhov sib txuam mechanism (piv txwv li, nres tso tawm txuas) los ntawm qhov txuas sab saum toj, ua tiav cov haujlwm xws li nres tso tawm.

Lub sij hawm txuas ntxiv yog Tsawg dua lossis sib npaug li 0.4 vib nas this, ua kom cov lus teb ceev ceev rau cov khoom siv ua haujlwm.

1.2 Rov pib dua (Power-Off Theem)

Thaum lub hwj chim raug txiav tawm lossis lub teeb liab tswj tau raug kaw, lub cev muaj zog tsis ua haujlwm, thiab lub twj tso kua mis hydraulic tsis muaj zog. Lub ua tau - nyob rau hauv lub siab nyem valve qhib, thiab hydraulic roj ntws rov qab mus rau lub reservoir.

Lub caij nplooj ntoos hlav rov qab (60Si2MnA alloy steel) nyob rau hauv lub tog raj kheej rebounds, rub lub piston thiab thawb pas nrig rov qab mus rau qhov chaw pib. Lub thrust yog tso tawm tag nrho, thiab qhov sib tw nres los yog tswj mechanism rov pib dua nyob rau hauv nws lub caij nplooj ntoos hlav quab yuam kom ua tiav braking lossis xauv.

Lub sij hawm thim rov qab yog tsawg dua lossis sib npaug li 0.35 vib nas this, ua kom cov lus teb ceev nrawm thiab ua kom cov cuab yeej muaj kev nyab xeeb.

1.3 Kev ruaj ntseg & kev ruaj ntseg lav

Pressure Stabilization Tsim: Ib qho ua tau - nyob rau hauv lub siab compensator tswj lub zog zoo ib yam, kom ruaj khov thrust output txawm nrog me me load fluctuations.

Kev tiv thaiv overload: Lub cev muaj zog tau nruab nrog F-chav tsev rwb thaiv tsev thiab lub thermal tiv thaiv, uas txiav tawm lub zog thaum qhov kub siab tshaj 155℃los tiv thaiv burnout vim lub sij hawm ntev overload.

Anti-Leakage Structure: Lub tog raj kheej siv FKM siab- cov ntsaws ruaj ruaj thiab lub welded reservoir, nrog IP54 tiv thaiv kev ntsuas rau tag nrho lub tshuab, zoo tiv thaiv plua plav thiab dej sib tsoo.

2. Cov yam ntxwv tseem ceeb

Kev sib xyaw ua ke: Modular tsim integrates lub cev muaj zog, twj tso kua mis, thiab lub tog raj kheej, txo qhov chaw installation thiab ua kom yooj yim rau ntawm -qhov chaw sib dhos.

Teb zoo: Tag nrho lub sij hawm teb (extension + retraction) Tsawg dua los yog sib npaug li 0.75 vib nas this, hloov mus rau siab - zaus pib- nres cycles (txog 400 zaug hauv ib teev).

Durable & Tsawg Tu: Lub tshuab hydraulic siv lub kaw lus tsim, tsis tas yuav tsum tau hloov roj ntau zaus; hnav- cov khoom tiv thaiv kom ntseeg tau tias lub neej ua haujlwm siab dua lossis sib npaug li 12,000 teev ua haujlwm.

Wide Compatibility: Standardized laub qws connector thiab mounting flange, tau tshaj YWZ, JWZ series thaiv brakes thiab ntau yam muaj kev tswj mechanisms.

3. Cov ntawv thov ib txwm

Nrog rau qhov ntsuas qhov siab ntawm 18 kN thiab 20 hli stroke, YT1-18ZB/2 yog tsim rau cov xwm txheej nruab nrab ntawm kev lag luam, feem ntau yog siv hauv:

3.1 Hoisting & Tsheb thauj mus los Machinery

Ua haujlwm tseem ceeb rau YWZ4, YWZ5 series electro-hydraulic block brakes, siv rau cov nyiaj siv ua haujlwm cranes, gantry cranes, hluav taws xob hoists, thiab tsheb thauj mus los hauv kev cob qhia thiab chaw xa khoom.

Piv txwv li, thaum lub sij hawm nqa thiab txav ntawm workpieces los ntawm overhead cranes, nws precisely tswj lub nres qhib thiab kaw, tsis txhob workpiece co los yog cov khoom zawv zawg, thiab xyuas kom meej hoisting kev ruaj ntseg.

3.2 Metallurgical & Mining Auxiliary Equipment

Siv nyob rau hauv lub braking tshuab ntawm blast furnace feeding machines, billet conveyors nyob rau hauv metallurgical nroj tsuag, thiab me me mine siv conveyors, inclined ncej winches.

Nws F-chav hluav taws xob rwb thaiv tsev lub cev muaj zog thiab plua plav tiv thaiv tsim kom haum rau siab- qhov kub thiab txias, plua plav ua haujlwm ib puag ncig, ruaj khov tswj cov cuab yeej siv braking kom tiv thaiv cov khoom tawg lossis cov khoom siv khiav tawm.

3.3 Chaw nres nkoj & Kev tsim kho tshuab

Txuas lub braking mechanisms ntawm me me chaw nres nkoj stackers, thawv gantry crane mus ncig teb chaws systems, thiab kev tsim kho qhov chaw ntauwd cranes, siv elevators.

Hauv kev tsim kho elevator, nws qhov kev ua haujlwm nrawm nrawm tuaj yeem ua rau muaj kev kub ntxhov hauv 0.35 vib nas this thaum lub zog tsis ua haujlwm tam sim ntawd, tiv thaiv kev nyab xeeb ntawm cov neeg ua haujlwm thiab cov khoom siv.

3.4 General Industrial Control Scenarios

Siv rau kev qhib thiab kaw tswj kev lag luam li qub (piv txwv li, cov khoom siv hauv cov kav dej, cov khoom siv hluav taws xob) thiab tsav tsheb me me clamping li, viav vias mechanisms (lub kaum sab xis viav vias tsawg dua lossis sib npaug li 90 degree).

Piv txwv li, nws tsav lub valve tseem ceeb ntawm cov khoom xa cov kav xa dej los ntawm kev thawb qws nthuav dav thiab kev cog lus, paub meej meej pib- nres kev tswj cov khoom.
