Ed SERIES EXPLOSION PROTECTED ELECTRO-HYDRAULIC THRUSTERS

DAIM NTAWV THOV

Cov ntaub ntawv pov thawj hluav taws xob hluav taws xob-hydraulic lub tog raj kheej yog ib hom kev tswj kev tsav, uas yog cov qauv nruj heev, thiab kev siv lub tshuab hluav taws xob, lub tshuab nqus dej thiab cov roj kheej kheej, Jt siv dav siv los tsav tsav ntau yam nruas thiab disc nres, thiab raws li kev tswj tsav ntawm ntau qhov kev lag luam li qub, rooj vag, kev taw qhia pendulum thiab kauj (GG lt; 90 °) mechanism thiab clamping li.

TUS TXHEEJ TXHEEM TIAV
● GB3836.1-2010 cov pa tawg hnyav ntu 1: cov khoom siv dav dav;
● GB3836.2-2010explosive puag ncig ntu 2: cov cuab yeej tiv thaiv los ntawm cov nplaim hluav taws xob tiv thaiv" d" ;;
● GB12476.1-2013 cov khoom siv hluav taws xob rau tiv thaiv cov plua plav ib puag ncig qhov 1: kev xav tau dav dav;
● GB12476.5-2013 cov khoom siv hluav taws xob rau cov khoom siv tiv thaiv cov plua plav ib feem 5: kev tiv thaiv kev tiv thaiv hom" tD" ;;
Sign Kev pov thawj tawg kos npe: Exd IIB T4 Gb / Ex tD A21 IP65 T130C;
Cov khoom no tau dhau qhov kev kuaj xyuas los ntawm lub chaw soj ntsuam zoo ntawm kev tawg-pov thawj cov khoom hluav taws xob tsim los ntawm lub xeev thiab tau daim ntawv pov thawj tus lej CNEx 20.0818 thiab CNEx 20.0819.

KEV TXHAWJ XEEB
Qhov siab:<>
● Qhov kub thiab txias: -20 ° C ~ +40 ° C
Humidity Cov av noo: ≤90%
T Cov ntsuas hluav taws xob: peb - ​​theem AC, rated voltage yog 380V- 460V, zaus yog 50Hz / 60Hz.
● Kev qias neeg qias neeg ntawm ib puag ncig ib puag ncig ≤3.
Requirements Cov teeb meem tshwj xeeb tuaj yeem tham txog ua ntej kev tsim khoom.

MAIN FEATURE

● Lub cev muaj hluav taws xob yog ntawm cov qauv tsis muaj roj, F qib rwb thaiv tsev, ruaj khov thiab zoo thaum tshav kub ua haujlwm.
Qhov saum npoo ntawm lub cev qag thiab lub tshuab nqus tau muab tshwj xeeb kom ua rau qhov chaw sib khi ntau ruaj khov.
● Kev sib npaug ntawm lub tsev huab cua tau teem rau ntawm ib sab ntawm cov roj lub tog raj kheej casing, uas tuaj yeem ua rau cov nrawm txhawm rau txhim kho ntawm txhua qhov kev taw qhia tsis pub dhau 0 ~ 180 ° thiab ua kom dav siv.
● Tag nrho cov khoom sib khi thiab cov kabmob yog tag nrho cov khoom lag luam nto moo hauv ntiaj teb.Qhov sealing yog ntseeg tau thiab ruaj khov.

TXHEEJ TXHEEM LI NTAWD
Switch Up txwv hloov; uas tuaj yeem qhia seb puas muaj nres tsheb qhib, lossis seb lub thruster puas nyob ntawm sab xis.
Switch Muaj kev txwv tsis pub hloov, uas tuaj yeem qhia tau seb tus nres puas zoo, seb lub thruster puas rov qab mus rau txoj haujlwm. Sab thiab nce thiab nqis txwv siv tau tuaj yeem ua ke.
Kev tsim lub caij nplooj ntoo hlav lossis tso lub caij nplooj ntoo hlav (tsuas yog ua stroke luv). Lub caij nplooj ntoos hlav quab yuam tuaj yeem txiav txim siab los ntawm cov neeg siv khoom, tab sis nyob rau hauv lub zog txwv tsis pub dhau los ntawm lub caij nplooj ntoo hlav (xa mus rau cov ntxhuav ntsuas).
● Ascending sij hawm -delay valve, nqis sij hawm -delay valve los yog ascending / descending lub sij hawm-ncua sij hawm valve tuaj yeem steplessly ntev lub sij hawm nce thiab flling, ncua ntau yam yog los ntawm 5s mus rau 30s ， lub sijhawm ncua sij hawm tuaj yeem tsim raws li cov neeg muas zaub' cov tseev kom muaj.

HLOOV

HLOOV

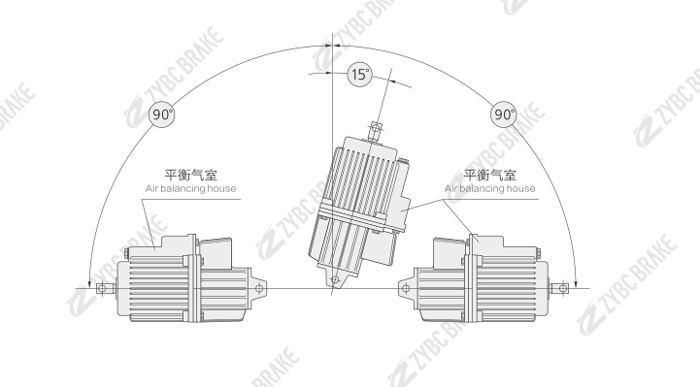

S Kev siv lub taub hau muaj peev xwm muab ntsia tau ib puag ncig 90 ° (thov qhia raws li kev txiav txim), lub taub hau ntawm thruster tuaj yeem tig mus rau thaj tsam 360; txhua lub thruster tuaj yeem ntsia tau perpendiculrly lossis horizontall, angularity (GG lt; 15 ° lossis> 15 °), Lub tsev huab cua sib npaug yuav tsum teeb tsa sab nraud.

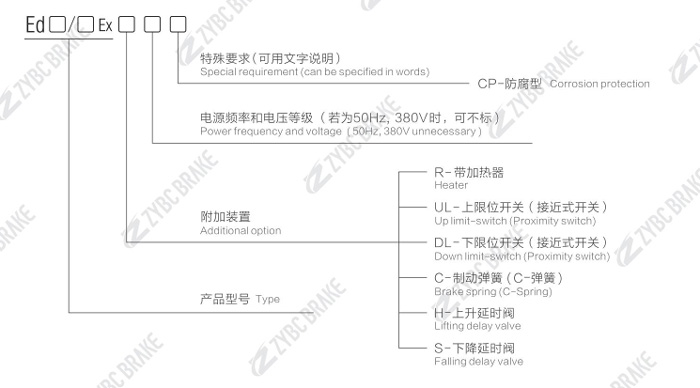

HAIS LUS MARK

HAIS TXWV EXAMPLE

Ed50 / 6ExSUL
Ed121 / 12 Ex

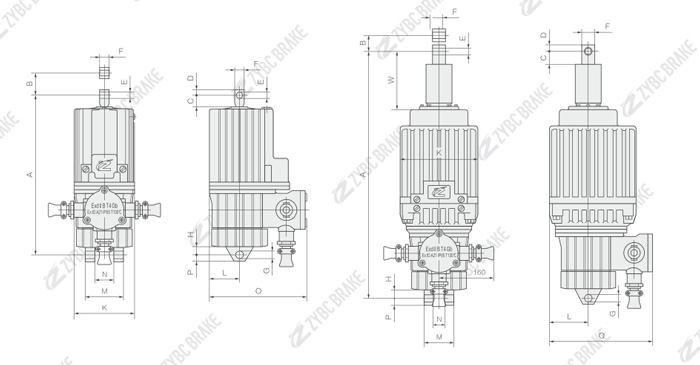

OUTLINE THIAB INSTALLATION DIMENSION

TECHNICALDATA THIAB DIMENSIONS NTAWM Ed SERIES EXPLOSION PROTECTED ELECTRO-HYDRAULICTHRUSTERS

Nco tseg: Muaj peb txoj hlua nkag ua haujlwm rau kev tiv thaiv kev tiv thaiv hluav taws xob hluav taws xob-hydraulic lub tog paug (pom raws li daim duab, txoj kab nkag cable yog nyob rau, txoj cai los ntawm tus qauv), cov qhua tuaj yeem xaiv txhua txoj haujlwm ywj siab.
