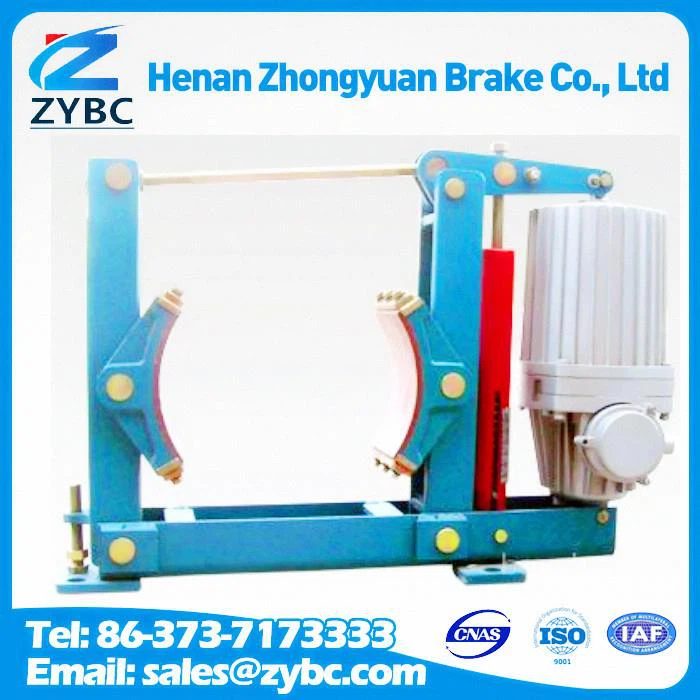

Electro Hydraulic nruas Nres TKG

Tuam txhab Taw Qhia:

Henan Zhongyuan Nres Co., Ltd yog lub hoobkas ntawm cov khoom siv rau crane thiab lifting machinery. Tam sim no lub Hoobkas tsim Crane NRES BRAKES TKG Series (TKG-160, TKG-200, TKG-300, TKG-400, TKG-500), ELECTRO-HYDRAULIC THRUSTERS TE series (TE-30, TE-50, TE-80 ) rau lub nruas brakes thiab RESISTANCE BOXES BR6F series (B6, BRF, BK analogue).

Nqe lus piav qhia txog cov khoom:

TKG-300 V2 winch lifting cargo 251.11.00.000-01 kev tsim kho thiab sib dhos ntawm crawler crane DEK-251, DEC-321 DEC-401 DEC-631 "-Chelyabinets" - ntsaws rau sab laug thiab sab xis ntawm lub tshuab txuas nrog sab ntawm txhua tus nrog lawv tus kheej iav, kev sib kis ntawm torque los ntawm hluav taws xob lub cev, thiab nyob rau lwm nrog ib lub nruas sib dhos rau winding lub hoist hlua. Kev tiv thaiv ntawm lub hauv paus no yog tsim nyog los nres thiab tuav lub pob tsa tau ntawm crane ntawm ib qhov siab. Thaum braking TAG-300U2 dais yuav tsum clamp thiab tuav lub nres ntim rubey 2511-16-1.01 nws txoj kev koom tes uas yog ib qho ntawm cov ntiv taw ntiv taw ntawm pob ntiv ntws 251.11.08.000, uas yog txuas nrog lub coupling ib nrab 06.01.2511.

Nres TAG-300U2 muaj ib lub tsav (380 V, 3 theem, 50 Hz), qhov kev lag luam nres nres pad clamping thiab tso lub nres pulley 2511-16-1.01 - electrohydraulic.

Tsoo HOM TAG

Cov pob zeb yog tsim los nres thiab tuav mechanisms shafts (tsuas yog ntawm cov khoom siv - kov cov cav tov) hauv ib qho chaw braked nrog cov uas tsis ua haujlwm. Mounted vertically nrog cov kab rov tav ntawm txoj kab nres tsheb nres ua hauj lwm hauv cov hluav taws uas muaj feem yuav raug mob. Thaum ntsia lub mechanisms ua haujlwm sab nraum zoov yuav tsum tau muaj kev tiv thaiv los ntawm ib lub kaspaus los ntawm kev los nag thiab kev txiav txim ntawm lub hnub ci tawg.

Cov lus qhia yooj yooj yim thiab cov yam ntxwv, tag nrho thiab qhov nce qhov ntev. Nres tsis electrohydraulic pushers. Nres tsheb TKG-160 200-TCG-TCG 300 TCG 400 TCG 500, braking torque, Nm, yam tsawg kawg yog 100 300 800 1500 2500 kab sab hauv, hli 160 200 300 400 500 hom pusher FC-30 FC-30 FC-50 FC- 80 FC-80 Lub caij sibtshuam V 380 380 380 380 380 zaus, Hz 50 50 50 50 50 fais fab siv, W, tsis ntau tshaj 160 160 250 370 370 Nruab nrab quab yuam nyob rau hauv cov pas nrig, H 300 300 500 800 800 pas, hli 32 32 65 65 65 Lub luj ntawm lub nres, kg 30 34 68113188.

Lub tswv yim thiab kev ua haujlwm.

Lub nres muaj lub zog qib lim zog, thiab lub tshuab ua lub tshuab electrohydraulic zog qib muaj xws li cov nram qab no qhov tseem ceeb: lub hauv paus uas cov caj npab nrog lub puab tsaig, qhov kho eccentrics thiab lub pas dej caij nplooj ntoos hlav. Ntawm lub plunger plunger nyob rau hauv qhov kev txiav txim ntawm lub caij nplooj ntoos hlav compressed caij nplooj ntoos hlav presses tag nrho tawm tsam lub nres disk nto. Thaum lub tshuab thawb nws lub piston qis dua, cov levers, tso tawm ntawm qhov kev txiav txim ntawm lub caij nplooj ntoos hlav, diverge rastormazhivaya pulley. Disinhibition tiav thaum tus pas nrig ntawm lub plunger uppermost txoj hauj lwm. Hom hlau electrohydraulic pusher tso cai pes tsawg tus inclusions roj stamp rau txawv ambient kub yog txiav txim tau los ntawm cov ntaub ntawv pusher mounted ntawm lub nres.

TAG nres siv nyob rau hauv yuav luag txhua tus Lavxias teb sab thuam thiab cov txuas ntawm cov choj, tshwj xeeb tshaj yog nyob rau ntawm qhov chaw txav ntawm cov crane nqa khoom thiab cov tswv yim, muaj ntau yam thiab yuav siv tau rau hauv txhua qhov chaw uas tsim nyog yuav tau khaws lub qhov chaw ruaj ruaj. winch los yog cov mechanisms uas siv cov gearboxes uas kuv tsis siv TCH nres. Nws tuaj yeem ua tiav nrog cov thawb thiab cov roj siv hluav taws xob uas tsim los tuav cov khoom siv roj hmab thiab cov motors hauv lub xeev xauv. Lub thawv yog nruab nrab ntawm ib qho tsis muaj mechanical pusher. Kev ua haujlwm yog tuav disinhibition sheave lub cheeb ntawm 100 mus rau 800 mm, thaum daim ntawv thov ntawm voltage. Thaum siv mus rau hauv ib lub tshuab hlwb hlau siv txoj siv txav ntawm lub pas nrig mus rau kev leverage li thawb lub pawm uas tuav los ntawm ib lub puab tsaig. Lub cev muaj zog ntawm qhov kev ua haujlwm yog nyob ntawm seb nws siv, thiab feem ntau yog los ntawm peb mus rau xyoo, tom qab lub sijhawm no muaj kev loosening thiab deformation ntawm txoj haujlwm tseem ceeb ntawm qhov uas nws tsis tuaj yeem ua nws txoj haujlwm zoo. Tus nqi ntawm lub TAG nres nyob ntawm lub tshuab uas yog mounted ntawm lub nres, vim hais tias tam sim no muaj ntau ntawm Suav thiab Lavxias lwm tus neeg ntawm cov khoom. Raws li, steel nqi rau txawv thawv uas txiav txim siab zoo ntawm sib dhos thiab kev pab cuam lub neej ntawm lub tshuab.

Ua rau tsis ua hauj lwm ntawm lub pusher txawv thiab tej zaum yuav muaj nyob rau hauv cov roj tawm, cov kab hluav taws xob tsis zoo, thiab kev tsim kho tsis xws luag ua haujlwm hauv lub neej. Cov paib poob poob lawv cov khoom vim qhov hnav thiab tuaj yeem hloov tau txhua yam lossis ib nrab los ntawm kev hloov pawm. Nres nres nres TAG muaj kev nkag nrog kev sib txhuam meem, uas securely tuav mechanisms shafts nyob rau hauv qhov kev txiav txim ntawm kev sib txhuam ntawm kev sib tw.

Nres TKG-100, nres TKG-160 thiab nres TKG-200 thiab nres TKG-200 tuaj yeem muaj nruab nrog cov thawb muag TE-16, TE-25 thiab TE-30 brake TKG-300 nruab nrog cov thawb kev TE-50 brake TKG-400, TAG- 500 muaj qhov sibtshuam nkaus xwb Cov TE-80 TKG-nres 600 tuaj yeem muaj nruab nrog cov thawv TE-150, TE-160 thiab TE-200 brake TKG-700 nruab nrog cov thawb nkaus xwb TE-200 Ex brake TAG ua tiav kev sib tw series RV thiab MRI.

Dimension ntawm TKG nres

Kev Ntsuas Ntawm Kev Tawm TKG
