Electromagnetic DC nruas nres

ZWZ series electromagnetic DC nruas nres yog tsuas yog siv rau lub deceleration thiab nres ntawm electromagnetic elevators, siv tsheb thauj mus los, chaw nres nkoj loading thiab unloading, metallurgy thiab siv machinery uas siv DC tsav los yog DC daim phiaj. Thiab nws tsis siv rau cov tshuab uas siv AC tsav....

Xa kev nug

Hauj lwm lawm

Basic Parameters:

Qauv: ZWZA, ZWZB

Siv tau lub log txoj kab uas hla: 200 ~ 800mm

Braking torque: 32 ~ 10000Nm

Cov xwm txheej ntawm kev siv:

Ambient kub: -25 ℃ -40 ℃

Kev khiav hauj lwm zaus yog tsawg dua 720c / h.

Qhov siab ntawm qhov chaw siv tsis pub tshaj 2000m.

Tsis muaj qhov cuam tshuam loj heev nruab nrab, roj av thiab cov plua plav conductive uas tuaj yeem ua rau cov hlau tsis zoo thiab puas rwb thaiv tsev nyob rau hauv ib puag ncig ua haujlwm.

Nws yog siv nyob rau hauv tsev qhov twg cov av noo ntawm huab cua tsis ntau tshaj 90% los yog nyob rau hauv los nag thiab daus tiv thaiv cov cuab yeej.

Lub zog hluav taws xob yog DC110V lossis DC220V. Yog tias cov neeg siv muaj cov cai tshwj xeeb, thov sib tham thiab txiav txim siab thaum xaj.

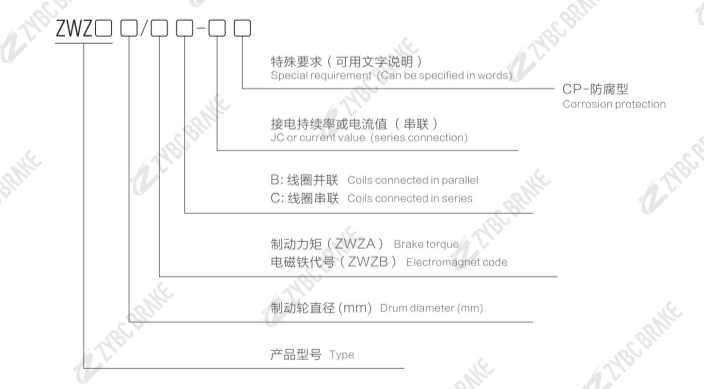

Order mark

Electromagnetic DC Drum Brake

Chav tsev: (mm)

Nres qauv	Braking torque (Nm)							D	h1	K	i	d	h2	b	F	G1 ___ G2	G3	A	E	H	M	m	S ___ Smax	Qhov hnyav (kg)
	Parallel kauj			Series kauj
				60% ntsuas tam sim no		40% ntsuas tam sim no
	Lub sijhawm siv hluav taws xob			Lub sijhawm siv hluav taws xob
	25%	40%	100%	25%	40%	25%	40%
ZWM-400	1500	1200	550	1500	1200	900	550	400	320	170	90	28	90	180	170	305 415	130	540	390	670	320	355	2 3	168
																415							3
ZWM-500	2500	1900	850	2500	1900	1500	1000	500	400	205	100	28	115	200	190	370	155	605	465	825	340	438	2.3	339
																475							3.5
ZWM-600	5000	3550	1550	5000	3550	3000	2050	600	475	250	126	42	140	240	230	450	180	690	570	965	420	500	2.7	500
																565							4
ZWM-700	8000	5750	2800	8000	5750	4800	3250	700	550	305	150	42	172	280	270	515	235	780	645	1115	480	577	3	689
																625							4.5
ZWM-800	12500	9100	4400	12500	9100	7500	5550	800	600	350	180	42	176	320	300	580	290	855	710	1250	540	650	3.3	881
																700							5

Electromagnetic DC Drum Brake Price

Hais txog peb:

Electromagnetic DC Drum Brake Factory

Zhongyuan Brake yog ib tus kws tshaj lij ntawm kev lag luam brakes. Peb cov khoom customized yog tsuas yog siv rau hauv cov cement, steel, docks, winches, siv conveyors, locomotives, gantry cranes, ntauwd cranes, choj cranes, jib cranes thiab choj cranes.

Thov koj xav xa tuaj rau peb koj cov kev xav tau, thiab peb yuav paub meej rau koj sai li sai tau.

FAQ

1. Koj puas muaj phau ntawv teev npe? Koj puas tuaj yeem xa koj cov catalog rau kuv?

Yog, peb muaj catalog. Thov hu rau peb, peb tuaj yeem xa koj cov khoom catalog online lossis ntawm email.

2. Koj lub Hoobkas puas tuaj yeem tsim raws li cov neeg siv khoom xav tau?

Yog lawm, peb tuaj yeem tsim cov khoom sib txawv raws li cov neeg siv khoom' kev xav tau.

3. Koj tus qauv ntim khoom yog dab tsi?

Feem ntau peb siv cov qauv ntim tsim nyog rau kev xa tawm lossis raws li koj xav tau

4. Kev them nyiaj yog dab tsi?

Feem ntau peb txais T / T. Peb kuj lees txais PayPal, Western Union thiab L / C thaum pom.

5. Thaum twg yog lub sijhawm khoom xa tuaj?

Peb yuav npaj cov khoom xa tuaj hauv 15-30 hnub tom qab koj them nyiaj.
