Electro Hydraulic Windproof nres nres

YFX Series Electro Hydraulic Windproof Brake Nws yog tsuas yog siv los ua lub tshuab cua tsis sib haum rau ntau yam kev tsheb nqaj hlau cranes xws li gantry cranes, portal cranes, thauj khoom thiab thauj cov choj ua haujlwm hauv huab cua qhib hauv cov chaw nres nkoj, wharves, thiab kev tsheb ciav hlau nyob rau hauv kev ua haujlwm thiab pab cuam windproof braking hauv qab. ...

Xa kev nug

Hauj lwm lawm

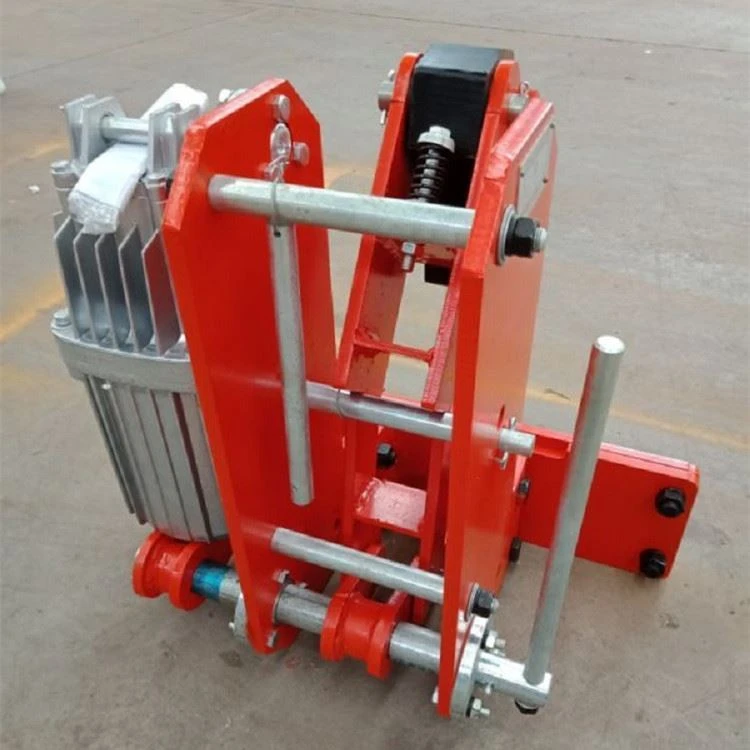

YFX Series Electro Hydraulic Windproof Nres

Nws yog tsuas yog siv los ua lub tshuab tsis muaj zog rau ntau yam kev tsheb ciav hlau xws li gantry cranes, portal cranes, thauj khoom thiab thauj cov choj ua haujlwm hauv cov huab cua qhib hauv cov chaw nres nkoj, wharves, thiab railways nyob rau hauv kev ua hauj lwm thiab pab windproof braking nyob rau hauv tsis ua hauj lwm tej yam kev mob.

Lub hauv paus ntsiab lus ua haujlwm ntawm YFX series electro-hydraulic windproof hlau wedge nres:

Thaum fais fab tuag, lub tshuab electro-hydraulic pusher ua, thiab nws cov pas nrig thawb nce nrawm. Thiab nqa cov hlau wedge los ntawm lub zog thiab kev sib kis mechanism kom lub crane ua haujlwm ib txwm. Thaum lub hwj chim tawm, lub laub khawm ntawm lub pusher yog nyob rau hauv qhov kev txiav txim ntawm lub caij nplooj ntoos hlav quab yuam, thiab hlau wedge yog muab tso rau ntawm lub tsheb ciav hlau los ntawm lub lever. Txiav lub log kom tuag thaum muaj cua daj cua dub, uas ua lub luag haujlwm ntawm kev tiv thaiv kev nyab xeeb.

Cov xwm txheej ntawm kev siv YFX series windproof hlau wedge:

Ambient kub: -20 ℃ ~ + 50 ℃.

Feem ntau siv rau peb-theem AC fais fab mov: 380V, 50Hz.

Qhov siab ntawm qhov chaw siv ua raws li cov kev cai cuam tshuam ntawm GB755-2000.

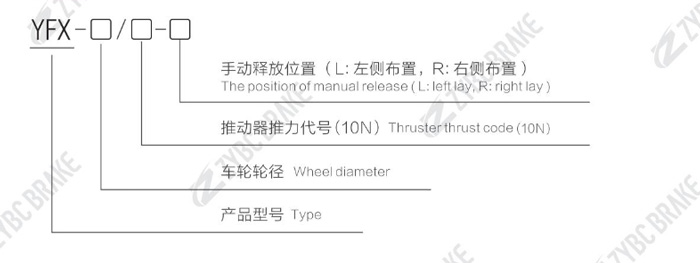

Order mark

Order piv txwv

YFX-600/80-L

YFX-600/80-R

Lus Cim: Yog tias lub zog hluav taws xob yog 380V 50Hz, nws tsis tas yuav tsum tau qhia kom meej, yog tias tsis yog, thov qhia qhov voltage thiab zaus.

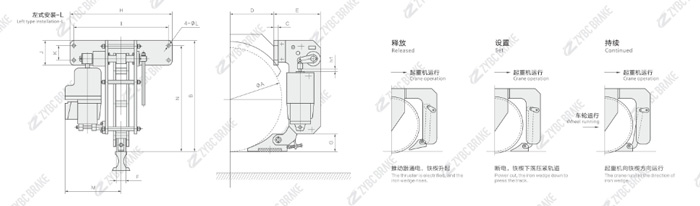

Daim ntawv qhia thiab installation dimension

Specifications

Nres Hom	A	B	C	D	E	F	G	H	I	J	K	L	M	N	h1	Qhov hnyav (Kg)	Thruster hom
YFX-350-80	350	640	20	180	310	60	55	520	460	165	100	18	360	607	8	129	Ed80/6C Ed80/6 SC
YFX-500/80	500	640	20	240	310	60	55	480	430	165	100	18	360	605	8	129
YFX-550/80	550	640	20	240	310	60	55	480	430	165	100	18	360	605	8	129
YFX-600/80	600	760	25	260	315	60	120	650	600	170	100	22	360	725	8	146
YFX-630/80	630	760	25	260	315	60	120	650	600	170	100	22	360	725	8	146
YFX-700/80	700	760	25	300	315	70	120	700	650	170	100	22	360	725	8	146
YFX-710/60	710	760	25	300	315	70	120	700	650	170	100	22	360	725	8	149
YFX-800/80	800	950	25	300	355	70	120	700	650	170	100	22	395	915	8	164
