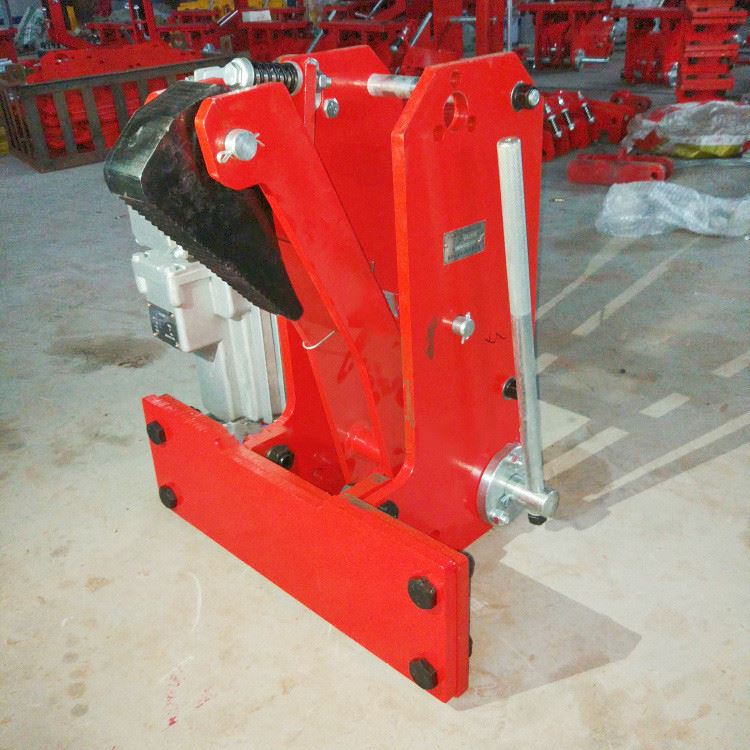

YFX Windproof Hlau Wedge Nres

Name: YFX Windproof Iron Wedge Brake Manufacturers thiab lwm tus - Tuam Tshoj Hoobkas - Zhongyuan Brake
Brand: Henan Zhongyuan Nres Co., Ltd
SKU: 159496400

Kev ua haujlwm ntawm YFX hom windproof hlau wedge nres Nws yog tsim rau sab nraum zoov loj thiab nruab nrab cranes thiab chaw nres nkoj thauj khoom thiab unloading machinery nyob rau hauv lub xeev ua hauj lwm ntawm windproof thiab tsis ua hauj lwm lub xeev ntawm auxiliary windproof braking. Ua hauj lwm tej yam kev mob ntawm windproof nres: 1. Ambient...

Xa kev nug

Hauj lwm lawm

Kev ua haujlwm ntawm YFX hom windproof hlau wedge nres

Nws yog tsim rau sab nraum zoov loj thiab nruab nrab-qhov loj me cranes thiab chaw nres nkoj loading thiab unloading machinery nyob rau hauv lub ua hauj lwm lub xeev ntawm windproof thiab tsis ua hauj lwm lub xeev ntawm auxiliary windproof braking.

Ua hauj lwm tej yam kev mob ntawm windproof nres:

1. Ambient kub: -20 ° C ~ +50 ° C;

2. txheeb ze av noo: ≤90%;

3. Fais fab mov voltage: 3-theem, AC380V, 50Hz (thov hu rau peb cov kws tshaj lij rau cov kev ntsuas tam sim no nyob rau hauv lwm qhov hluav taws xob voltages);

4. Kev ua haujlwm: tsis tu ncua (S3-60% 1200 zaug / teev) thiab txuas ntxiv (S1);

5. Yog tias koj muaj lwm yam tshwj xeeb, thov hu rau peb.

Order mark

Order piv txwv

YFX-600/80-L

YFX-600/80-R

Lus Cim: Yog tias lub zog hluav taws xob yog 380V 50Hz, nws tsis tas yuav tsum tau qhia kom meej, yog tias tsis yog, thov qhia qhov voltage thiab zaus.

Daim ntawv qhia thiab installation dimension

Specifications

Nres Hom	A	B	C	D	E	F	G	H	I	J	K	L	M	N	h1	Qhov hnyav (Kg)	Thruster hom
YFX-350-80	350	640	20	180	310	60	55	520	460	165	100	18	360	607	8	129	Ed80/6C Ed80/6 SC
YFX-500/80	500	640	20	240	310	60	55	480	430	165	100	18	360	605	8	129
YFX-550/80	550	640	20	240	310	60	55	480	430	165	100	18	360	605	8	129
YFX-600/80	600	760	25	260	315	60	120	650	600	170	100	22	360	725	8	146
YFX-630/80	630	760	25	260	315	60	120	650	600	170	100	22	360	725	8	146
YFX-700/80	700	760	25	300	315	70	120	700	650	170	100	22	360	725	8	146
YFX-710/60	710	760	25	300	315	70	120	700	650	170	100	22	360	725	8	149
YFX-800/80	800	950	25	300	355	70	120	700	650	170	100	22	395	915	8	164

Hais txog Zhongyuan Brake:

Henan Zhongyuan Nres Co., Ltd tau tsim nyob rau hauv 2004 raws li lub koom haum nres ntawm Tuam Tshoj' kev lag luam hnyav machinery. Actively qhia txawv teb chaws nres khoom tsim technology, thiab tam sim no nws tau tsim ib tug domestic thawj-chav kawm ntawv, thoob ntiaj teb advanced, domestic ntau lawm muaj peev xwm, thiab tag nrho cov specifications ntawm industrial nres kev manufacturers. Lub tuam txhab tau txais ISO 9001: 2015, ISO14001: 2015, OHSASI18001: 2007 thiab lwm yam ntawv pov thawj.
