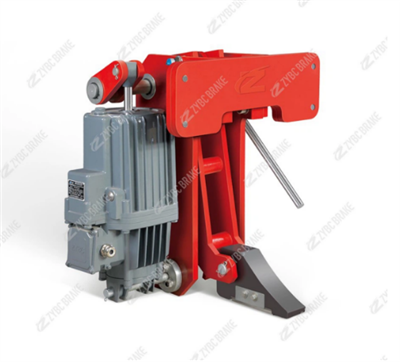

YFX-800/80 Series Electro-hydraulic Storm Braking Wedges Nres
1. Core Function & Working Principple YFX series yog qhov ua tsis tiav -kev nyab xeeb (ib txwm kaw) cov cuab yeej siv tshwj xeeb rau kev tiv thaiv - cua tiv thaiv ntawm kev tsheb ciav hlau - mounted cranes. Kev Ua Haujlwm (Power On): Thaum lub hwj chim qhib, hluav taws xob - hydraulic pusher (ED80/6WS hom) qhib. Lub piston pas nrig nce, rub ...
Hauj lwm lawm
1. Core Function & Txoj Cai Ua Haujlwm
YFX series yog ibua tsis tiav- nyab xeeb (ib txwm kaw)ntaus ntawv siv tshwj xeeb rauanti- cua tiv thaivntawm rail -mounted cranes.
Kev Ua Haujlwm (Power On):Thaum lub hwj chim qhib, hluav taws xob - hydraulic pusher (ED80/6WS hom) qhib. Lub piston pas nrig nce, rub lub lever mechanism raunqa hlau wedgedeb ntawm txoj kev tsheb ciav hlau, cia lub crane mus ncig.
Braking (Power Off):Thaum lub hwj chim raug txiav (piv txwv li, thaum muaj cua daj cua dub lossis thaum muaj xwm txheej ceev), cov hydraulic siab poob. Ib qho ua tau - nyob rau hauv lub caij nplooj ntoos hlav ua rau tus pas nrig thawb kom nqis, tsav cov hlau wedge kom ruaj khov mus rau txoj kev tsheb ciav hlau. Qhov nowedges lub log cranenyob rau hauv qhov chaw, tiv thaiv kev txav.
Feature tseem ceeb:Tus tsim feem ntau suav nrog ancua valvekom cov hlau wedge qis qis kom tsis txhob muaj kev cuam tshuam.
2. Kev txiav txim siab tus lej qauv: YFX-800/80
YFX:Series npe rau hluav taws xob-Hydraulic Windproof Iron Wedge.
800:Qhia qhovlog txoj kab uas hla(hauv mm) ntawm lub crane nws yog tsim kom haum. Chav tsev no yog rau cranes nrog800 hli log.
80:Hais txog qhovthrust (pushing force)specification ntawm hluav taws xob - hydraulic pusher (feem ntau yog ibED80 uaseries pusher).
3. Cov Ntsiab Lus Qhia Tshwj Xeeb
| Parameter | Specification rau YFX-800/80 |
|---|---|
| Hom | Hluav taws xob-Hydraulic / Fail-Safe (Spring Applied) |
| Log Diameter | 800 hli |
| Kev sib tw Pusher | ED80/6 WS(los yog zoo sib xws ED80 variant) |
| Qib tiv thaiv | IP65(Plua plav nruj thiab tiv thaiv cov dav hlau dej) |
| Fais fab mov | AC 380V / 50Hz(Standard industrial 3-theem) |
| Qhov hnyav | Kwv yees li . 129 kg(Reference raws li cov ntaub ntawv zoo sib xws) |
| Kev sib txhuam thaiv | Siab -hardness, hnav-resistant steel |
4. Cov yam ntxwv tseem ceeb
Automatic Wedging:Lub tshuab cia li kaw lub log crane tiv thaiv kev tsheb ciav hlau thaum lub zog poob, muab kev ruaj ntseg txhua yam thaub qab.
Interlocking muaj peev xwm:Nws tuaj yeem raug hluav taws xob cuam tshuam nrog lub crane txoj kev mus los. Qhov no ua kom lub crane tsis tuaj yeem txav tau tshwj tsis yog tias cov hlau wedge tau nqa tag nrho.
Robust & Sealed:Kev siv ntawmtus kheej -lubricating bearingsntawm pob khawm thiab covIP65rated pusher ua kom lub neej ntev nyob rau hauv qhov hnyav sab nraum zoov (plua plav, nag, daus).
Phau ntawv tso tawm:Nruab nrog phau ntawv tso tawm tes rau kev saib xyuas lossis kev ua haujlwm kub ntxhov thaum tsis muaj hluav taws xob.
Lub Xeev Indication:Feem ntau suav nrog kev txwv kev hloov pauv los muab lub teeb liab qhia seb lub npoo puas yog "lifted" (npaj khiav) lossis "down" (braked).
5. Cov ntawv thov ib txwm
YFX-800/80 feem ntau yog siv rau cov tshuab sab nraum zoov loj:
Rail-Mounted Gantry Cranes (RMG):Rau cov chaw nres nkoj thiab thawv yards.
Portal Crane & Loading Choj:Siv nyob rau hauv shipyards thiab bulk khoom tuav.
Sab nraum zoov Overhead Crane:Nyob rau hauv steel mills los yog cia yards raug cua.
6. Cov lus qhia txog kev tu thiab ua haujlwm
Clearance Check:Tsis tu ncua xyuas qhov sib txawv ntawm cov hlau wedge thiab cov tsheb ciav hlau. Lub wedge yuav tsum nqa siab txaus kom tshem tawm txoj kev tsheb ciav hlau tag nrho thaum mus ncig tab sis tsis siab kom ua rau lub sijhawm poob ntau dhau.
Kev sib txhuam nto:Tshawb xyuas cov hniav/grooves ntawm qhov kev sib txhuam thaiv. Yog tias cov hniav tau hnav los ntawm ntau tshaj ib nrab, lub thaiv yuav tsum tau hloov kom ruaj khov txaus thaum muaj cua daj cua dub.
Hydraulic kua:Xyuas cov roj theem hauv hluav taws xob - hydraulic pusher (ED80) kom ntseeg tau tias kev ua haujlwm du thiab tiv thaiv lub cev muaj zog burnout.
Kev tuav tuav:Xyuas kom meej tias phau ntawv tso tawm mechanism tsis muaj kev cuam tshuam, vim nws yog qhov tseem ceeb rau kev saib xyuas kev nyab xeeb.
