Thruster Disc nres
YPZ2 Series Thruster Disc Nres YPZ2ⅠⅡⅢ series disc nres ua raws li DIN15435 tus qauv thiab JB / T7020-2006 tus qauv. YPZ2ⅣⅤⅥ series electro-hydraulic disc nres ua raws li DIN15435 tus qauv thiab JB / T7020-2006 tus qauv. Cov xwm txheej ntawm kev siv: ambient kub: -20 ℃ -50 ℃. Yuav tsum tsis muaj ...
Hauj lwm lawm

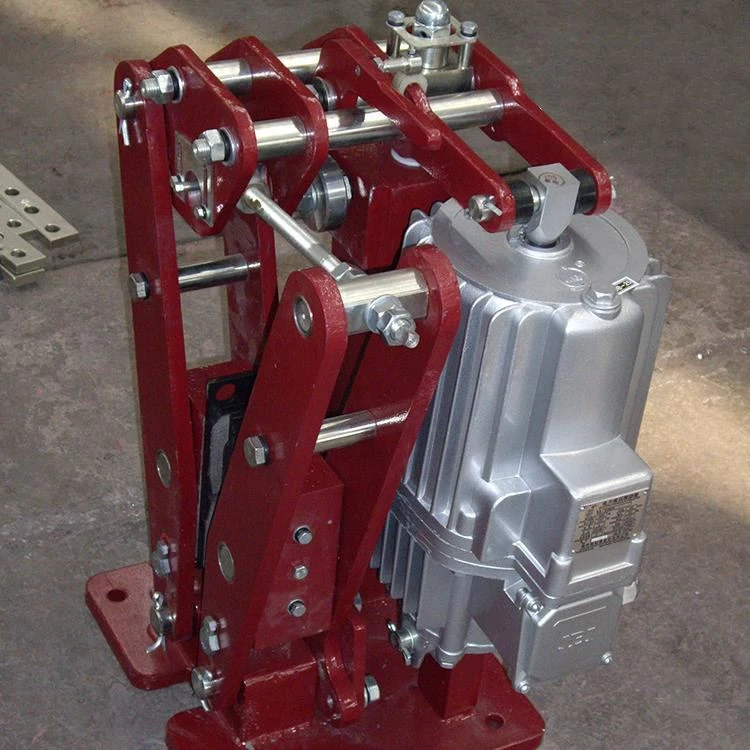

YPZ2 Series Thruster Disc Nres
YPZ2ⅠⅡⅢ series disc brakes ua raws li DIN15435 tus qauv thiab JB / T7020-2006 tus qauv.
YPZ2ⅣⅤⅥ series electro-hydraulic disc nres ua raws li DIN15435 tus qauv thiab JB / T7020-2006 tus qauv.
Cov xwm txheej ntawm kev siv:
ambient kub: -20 ℃ -50 ℃.
Yuav tsum tsis muaj hluav taws kub, tawg thiab corrosive gases nyob rau hauv ib puag ncig ua haujlwm.
Qhov txheeb ze av noo ntawm huab cua tsis ntau tshaj 90%
Fais fab mov: Peb-theem AC, 380V, 50HZ o (60Hz lossis lwm lub zos hluav taws xob kuj tuaj yeem tsim tau raws li kev xav tau).
Qhov siab ntawm qhov chaw siv raws li GB755-2000.
Thaum qhov kub thiab txias qis dua -20 ℃, siv YH-10 aviation hydraulic roj lossis lub rhaub raws li xav tau.
Anti-corrosion khoom yuav tsum tau siv rau sab nraum zoov los nag thiab daus yaig los yog corrosive gases thiab xov xwm.
Cov ntaub ntawv thiab qhov ntev ntawm YPZ2 I series disc nres
| Thruster hom | Qhov Loj (mm) | |||||||||||||||||||||||||||||||||
t | H1 | H2 | H3 | b2 | d3 | f | g | h1 | i1 | i2 | k2 | A2 | A3 | n1 | n2 | p1 | P2 | q | n | C2 | R | A1 | C1 | X | V | |||||||||
Ed 23/5 | 20 | 710 | 515 | 630 | 70 | 18 | 310 | 300 | 230 | 180 | 80 | 120 | 235 | 235 | 80 | 100 | 175 | 160 | 20 | 15 | 75 | 460 | 280 | 297 | 80 | 200 | ||||||||
Ib 30/5 | 277 | 297 | 80 | 197 | ||||||||||||||||||||||||||||||
Ed 50/6 | 317 | 297 | 97 | 254 | ||||||||||||||||||||||||||||||
Ib 80/6 | 317 | 297 | 97 | 254 | ||||||||||||||||||||||||||||||
Relative Dimensions ntawm brake disc | Cov ntaub ntawv technical | |||||||||||||||||||||||||||||||||
Disc txoj kab uas hla | b1 | D2 | D3 | E | K1 | S | Thruster | Disc Diameter | Qhov hnyav (kg) | |||||||||||||||||||||||||
315 | 355 | 400 | 450 | 500 | ||||||||||||||||||||||||||||||
315 | 30 | 20 | 235 | 120 | 118 | 58 | 0.9±0.2 | Thruster hom | Lub zog (W) | Reted Tam sim no (A) | Max.Brake torque µ=0,4 | |||||||||||||||||||||||
355 | 30 | 20 | 275 | 160 | 138 | 78 | 0.9±0.2 | Ed 23/5 | 165 | 0.52 | 270 | 320 | 89 | |||||||||||||||||||||
400 | 30 | 20 | 320 | 205 | 160 | 100 | 0.9±0.2 | Ib 30/5 | 200 | 0.46 | 380 | 440 | 520 | 95 | ||||||||||||||||||||
450 | 30 | 20 | 370 | 255 | 185 | 125 | 0.9±0.2 | Ed 50/6 | 210 | 0.48 | 645 | 670 | 790 | 910 | 1000 | 102 | ||||||||||||||||||
500 | 30 | 20 | 420 | 305 | 210 | 150 | 0.9±0.2 | Ib 80/6 | 330 | 1.42 | 1030 | 1150 | 1350 | 1560 | 1750 | 104 | ||||||||||||||||||
Yog xav paub ntxiv cov kev ntsuas, thov koj xav tiv tauj peb thiab xa koj cov kev xav tau rau peb!
FAQ
Xa koj cov lus nug ntxaws raws li hauv qab no
1. Nres torque tus nqi ntau yog
_____N.m
2. Lub tshuab hom twg lub nres yuav raug ntsia rau?
Cranes lossis Winch lossis lwm lub tshuab?
3. Dab tsi yog qhov kev tiv thaiv corrosion ntawm nres painting thiab txheem qhov chaw?
yog los tsis yog
4. Lub zog
____v, ____hz, ____phase.
(Customized los ntawm 220v-480v, 50HZ / 60HZ, 3Phase / Ib Phase).
5. Thov ceeb toom peb cov khoom siv ntxiv ntawm cov nres yog tias koj xav tau.
