Overhead Crane Brakes

YWZ4 Series Overhead Crane Brakes Hydraulic nruas nres yog tsuas yog siv rau cov neeg kho tshuab nres ntawm kev tsav tsheb hauv kev nqa, kev thauj mus los, metallurgy, mining, ports, thiab kev tsim kho tshuab. Nws muaj qhov zoo ntawm kev ruaj ntseg braking, nyab xeeb thiab txhim khu kev qha, yooj yim txij nkawm, tsis muaj zog ...

Xa kev nug

Hauj lwm lawm

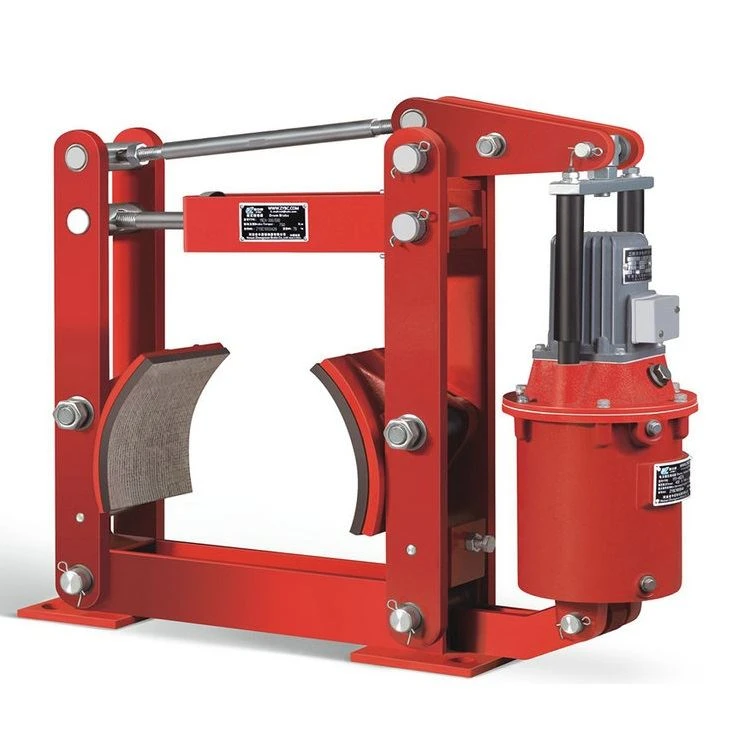

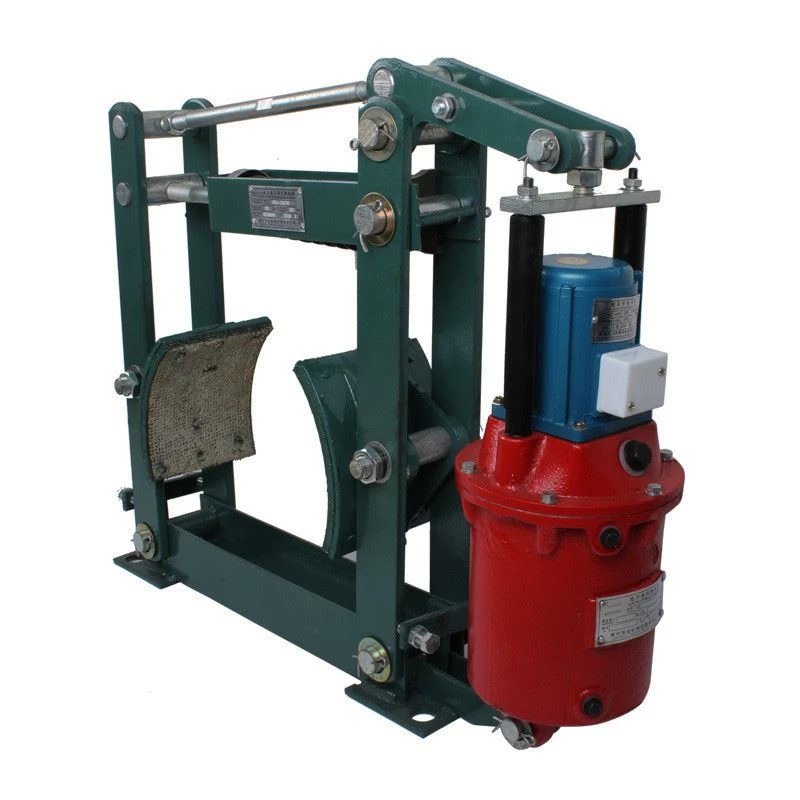

YWZ4 Series Overhead Crane Brakes

Hydraulic nruas nres yog tsuas yog siv rau cov neeg kho tshuab braking ntawm kev tsav tsheb hauv lifting, tsheb thauj mus los, metallurgy, mining, ports, thiab siv machinery.

Nws muaj qhov zoo ntawm kev ruaj ntseg braking, muaj kev nyab xeeb thiab txhim khu kev qha, kev saib xyuas yooj yim, kev siv hluav taws xob tsawg, lub neej ntev, tsis muaj suab nrov, thiab lwm yam.

Cov xwm txheej ua haujlwm:

1. Qhov siab:<>

2. Ambient kub: -20 ° C ~ +40 ° C;

3. txheeb ze av noo: ≤90%;

4. Kev ua haujlwm: sib tshuam (S3-60%) thiab txuas ntxiv (S1);

5. Fais fab mov voltage: peb-theem AC, AC380 50Hz (lwm lub hwj chim theem tuaj yeem kho raws li xav tau);

6. Thaum koj muaj cov cai tshwj xeeb, thov tham nrog peb.

Nres hom	Thruster hom	Braking torque (Nm)	Qhov Loj (mm)																Qhov hnyav (kg)
Nres hom	Thruster hom	Braking torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	G3	Qhov hnyav (kg)
YWZ4- 100/18	YT1-18z/2	40	269	70	137	100	13	130	75	125	125	384	100	40	110	144	6	50	20
Txc4- 150/25	YT1-25z/4	100	307	90	154	150	17	175	100	170	170	437	140	60	150	144	8	70	26
YWZ4- 200/25	YT1-25z/4	200	347	90	154	200	17	210	100	195	195	437	170	60	175	156	8	95	30
YWZ4- 300/25	YT1-25z/4	320	447	140	160	300	22	290	130	275	275	590	240	80	250	210	10	125	63
YWZ4- 300/45	YT1-45z/5	630	459	140	178	300	22	290	130	275	275	590	240	80	250	210	10	125	70
TSW 4-300/90	YT1-90z/8	750	510	140	210	300	22	320	130	275	275	690	240	80	250	210	10	125	80
YWZ4- 400/45	YT1-45z/5	1000	564	180	220	400	22	370	180	350	350	750	320	130	325	275	12	190	120
TSW 4-400/90	YT1-90z/8	1600	595	180	220	400	22	370	180	350	350	750	320	130	325	275	12	190	130
YWZ4- 400/125	YT1-125z/10	2200	670	180	254	400	22	370	180	350	350	847	320	130	325	279	12	190	167
YWZ4- 500/90	YT1-90z/8	2500	670	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZ4-500/125	YT1-125z/10	2650	692	200	254	500	22	440	200	405	405	940	400	150	380	310	16	225	220
YWZ4- 500/180	YT1-180z/12	3000	692	200	254	500	22	440	200	405	405	946	400	150	380	310	16	225	235
YWZ4- 600/90	YT1-90z/8	3200	805	240	315	600	26	555	220	500	500	1087	475	170	475	400	18	250	400
YWZ4- 600/125	YT1-125z/10	4500	827	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	415
YWZ4- 600/180	YT1-180z/12	5000	827	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	430
YWZ4- 700/180	YT1-180z/12	8000	957	280	390	700	34	600	270	575	575	1248	550	200	540	495	25	315	500
YWZ4-800/180	YT1-180z/12	10000	1094	320	436	800	34	680	320	677	677	1389	600	240	620	556	25	367	720
YWZ4-800/320	YT1-320z/12	12500	1155	320	436	800	34	680	320	677	677	1389	600	240	620	556	25	367	885

Overhead Crane Brakes Price

Overhead Crane Brakes Factory

Overhead Crane Brakes For Sale

Overhead Crane Brakes In China

Peb qhov kev pabcuam

1. Zoo meej braking kev ua tau zoo.

2. Tus nqi sib tw.

3. Kev xa khoom raws sijhawm.

4. Tag nrho cov khoom yog tswj los ntawm ISO-9001.

5. Kev txhawb nqa kev tshaj lij.

6. Muab ntau yam kev kho deg raws li cov neeg siv khoom xav tau.

7. OEM xaj tau txais tos.

8. raws sij hawm thiab kev pab cuam tom qab muag.

9. Txais tos nug.

Zhongyuan Brake hom muaj keeb kwm ntawm 17 xyoo. Rau 17 xyoo, peb ib txwm hais kom daws txhua yam teeb meem kev lag luam nres rau peb cov neeg siv khoom. Ua raws li cov hauv paus ntsiab lus ntawm lub koob npe nrov, zoo siab, pragmatism, thiab kev ruaj ntseg zoo. Nrog pab pawg kws tshaj lij, peb tuaj yeem daws teeb meem rau cov neeg siv khoom raws sijhawm.

Yog tias koj muaj kev xav tau ntawm crane nres, thov koj xav tiv tauj peb.

Cim npe nrov: overhead crane brakes, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized

Lub Hoobkas YWZ4 (YT1) Series Electro-hydraulic Nruas Nruas Ua Hauv Xov Tooj
