YWZ4 Series Electro-hydraulic Nruas Nres

Tsis yooj yim:
Khoom qauv: YWZ4-160, YWZ4-200, YWZ4-250, YWZ4-315, YWZ4-400, YWZ4-500, YWZ4-630, YWZ4-710, YWZ4-800
Cov log log siv tau: 160-800mm
Braking torque: 80-12000Nm

Xa kev nug

Hauj lwm lawm

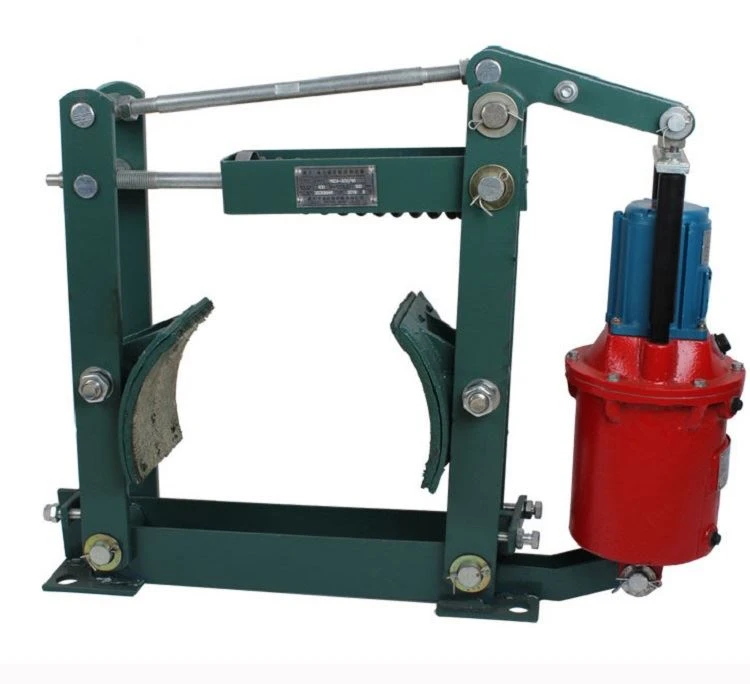

YWZ4 Series Electro-hydraulic Nruas Nres

Nws tau siv dav hauv kev txo qis thiab nres (txij nkawm) nres ntawm ntau yam txheej txheem hauv ntau yam kev nqa thiab kev thauj mus los, kev siv thauj mus los, chaw thau khoom thauj khoom thiab tshem tawm, cov hlau thiab kev tsim kho tshuab nrog qhov xav tau pov thawj tawg.

Ua haujlwm zoo:

Qhov siab:<>

Kub ib puag ncig: -20 ° C ~ -40 ° C;

Txheeb ze cov av noo: ≤90%;

Kev ua haujlwm: sib quas ntus (S3-60%) thiab txuas ntxiv mus (S1);

Lub hwj chim muab hluav taws xob: peb theem AC, AC380 50Hz (lwm qib zog tuaj yeem kho raws li xav tau);

Yog tias koj muaj qhov tshwj xeeb xav tau, thov qhia peb qhov koj xav tau thaum ua kev nug.

Khoom Paub meej

YWZ4

Lub ntsiab lus qauv

Kev ntsuas ntsuas

Nco tseg: YWZ4 series nres sib tw Ed Thruster

Nres hom	Hom thruster	Nres torque (Nm)	Qhov ntev (hli)																Qhov hnyav (kg)
Nres hom	Hom thruster	Nres torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	G3	Qhov hnyav (kg)
YWZ4- 100/E23	Hnub tim 23/5	40	320	70	160	100	13	130	75	125	125	377	100	40	110	144	6	50	21
YWZ4-150/E23	Hnub tim 23/5	100	347	90	160	150	17	175	100	170	170	437	140	60	150	144	8	70	25
YWZ4-150/E30	Hnub tim 30/5	120	347	90	160	150	17	175	100	170	170	461	140	60	150	144	8	70	29
YWZ4-200/E23	Hnub tim 23/5	200	430	90	160	200	17	210	100	195	195	468	170	60	175	156	8	95	31
YWZ4-200/E30	Hnub tim 30/5	230	430	90	160	200	17	210	100	195	195	468	170	60	175	156	8	95	34
YWZ4-300/E30	Hnub tim 30/5	320	529	140	160	300	22	290	130	275	275	595	240	80	250	213	10	125	65
YWZ4-300/E50	Kev 50/6	630	529	140	190	300	22	290	130	275	275	595	240	80	250	213	10	125	78
YWZ4- 300/E80	Ib 80/6	750	529	140	190	300	22	290	130	275	275	595	240	80	250	213	10	125	79
YWZ4-400/E50	Kev 50/6	1000	664	180	220	400	22	370	180	350	350	764	320	130	325	275	12	190	128
YWZ4- 400/E80	Ib 80/6	1600	664	180	220	400	22	370	180	350	350	764	320	130	325	275	12	190	130
YWZ4- 400/E121	Ib 121/6	2000	664	180	240	400	22	370	180	350	350	764	320	130	325	275	12	190	150
YWZ4- 500/E121	Ib 121/6	2500	713	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZ4- 500/E201	Xyoo 201/6	3600	713	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZ4- 600/E121	Ib 121/6	3200	848	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	390
YWZ4- 600/E201	Xyoo 201/6	5000	848	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	390
YWZ4- 700/E201	Xyoo 201/6	8000	978	280	390	700	34	600	270	575	575	1251	550	220	540	495	25	315	465
YWZ4- 700/E301	Ib 301/12	8650	978	280	390	700	34	600	270	575	575	1251	550	220	540	495	25	315	466
YWZ4-800/E301	Ib 301/12	12500	1115	320	436	800	34	680	320	677	677	1417	600	240	620	556	25	367	885

Nco tseg: YWZ4 series nres sib dhos YT1 Thruster

Nres hom	Hom thruster	Nres torque (Nm)	Qhov ntev (hli)																Qhov hnyav (kg)
Nres hom	Hom thruster	Nres torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	G3	Qhov hnyav (kg)
YWZ4- 100/18	YT1-18z/2	40	269	70	137	100	13	130	75	125	125	384	100	40	110	144	6	50	20
YWZ4- 150/25	YT1-25z/4	100	307	90	154	150	17	175	100	170	170	437	140	60	150	144	8	70	26
YWZ4- 200/25	YT1-25z/4	200	347	90	154	200	17	210	100	195	195	437	170	60	175	156	8	95	30
YWZ4-300/25	YT1-25z/4	320	447	140	160	300	22	290	130	275	275	590	240	80	250	210	10	125	63
YWZ4- 300/45	YT1-45z/5	630	459	140	178	300	22	290	130	275	275	590	240	80	250	210	10	125	70
YWZ4- 300/90	YT1-90z/8	750	510	140	210	300	22	320	130	275	275	690	240	80	250	210	10	125	80
YWZ4- 400/45	YT1-45z/5	1000	564	180	220	400	22	370	180	350	350	750	320	130	325	275	12	190	120
YWZ4- 400/90	YT1-90z/8	1600	595	180	220	400	22	370	180	350	350	750	320	130	325	275	12	190	130
YWZ4- 400/125	YT1-125z/10	2200	670	180	254	400	22	370	180	350	350	847	320	130	325	279	12	190	167
YWZ4- 500/90	YT1-90z/8	2500	670	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZ4-500/125	YT1-125z/10	2650	692	200	254	500	22	440	200	405	405	940	400	150	380	310	16	225	220
YWZ4- 500/180	YT1-180z/12	3000	692	200	254	500	22	440	200	405	405	946	400	150	380	310	16	225	235
YWZ4- 600/90	YT1-90z/8	3200	805	240	315	600	26	555	220	500	500	1087	475	170	475	400	18	250	400
YWZ4- 600/125	YT1-125z/10	4500	827	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	415
YWZ4- 600/180	YT1-180z/12	5000	827	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	430
YWZ4- 700/180	YT1-180z/12	8000	957	280	390	700	34	600	270	575	575	1248	550	200	540	495	25	315	500
YWZ4- 800/180	YT1-180z/12	10000	1094	320	436	800	34	680	320	677	677	1389	600	240	620	556	25	367	720
YWZ4- 800/320	YT1-320z/12	12500	1155	320	436	800	34	680	320	677	677	1389	600	240	620	556	25	367	885
