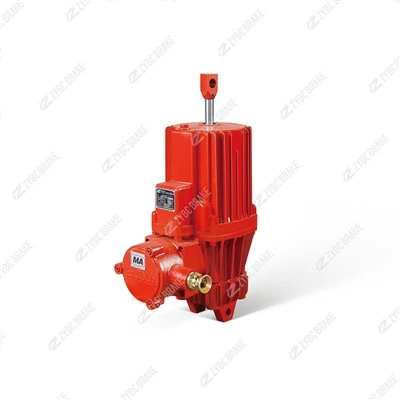

BEd80/6 Series Explosion-Protected Electro-Hydraulic

BEd80/6 yog ibExd Itawg- tiv thaiv electro-hydraulic thruster nrog 800 N rated thrust thiab 60 mm stroke, tsim rauunderground coal mineslos ua kom lub nruas / disc nres ntawm conveyors, hoists, thiab lwm yam khoom siv mining hauv 瓦斯 / thee plua plav explosive atmospheres.

---

Core Specifications

Parameter	Tus nqi
Rated zog	800 N (80 kgf)
Rated mob stroke	60 mm
Lub cev muaj zog	290-330 W (peb{2}}theem, 380 V / 660 V / 1140 V, 50 Hz)
Lub sijhawm ua haujlwm	Nce: ~ 0.5 s; Tsis kam: ~ 0.49 s
Max lub voj voog	1500 cycles / teev
Explosion-cov cim pov thawj	Exd I (ua raws li GB3836.1/2-2010)
Rwb thaiv tsev / tiv thaiv	F chav kawm / IP55-IP65
Ua haujlwm temp	-20℃rau +40℃(tsawg dua lossis sib npaug li 2000 m qhov siab)
Qhov hnyav	18-20 Kg

---

Qauv & Txoj Cai Ua Haujlwm

Integrated tsim: Kev tawg- pov thawj lub cev muaj zog + centrifugal twj + lub tog raj kheej + pushrod; flameproof vaj tse nrog kaw pob qij txha thiab cov ntaub ntawv pov thawj cable caj pas.

Kev ua haujlwm:

Fais fab-on: Lub cev muaj zog tsav lub impeller los tsim lub siab, nqa lub piston/pushrod kom compress lub caij nplooj ntoos hlav nres (tso nres).

Fais fab-off: Impeller nres; piston nqis los nyob rau hauv lub caij nplooj ntoos hlav / lub ntiajteb txawj nqus, roj rov qab, thiab lub nres nres.

---

Qhov Zoo Tshaj Plaws

Flameproof kev nyab xeeb: Exd I daim ntawv pov thawj rau kev siv thee mine; flameproof pob qij txha thiab kaw vaj tsev tiv thaiv qhov chaw ignition.

Compact & npaum: Tus kheej-cov roj tank tshem tawm cov kav dej sab nraud; tsawg zog noj thiab teb ceev ceev.

Durable: F-chav tsev rwb thaiv tsev, corrosion- shafts resistant, thiab ob lub foob rau lub neej ntev.

Dual{0}}lub luag haujlwm: Haum rau S1 txuas ntxiv lossis S3 cuam tshuam (tsawg dua lossis sib npaug rau 60% lub luag haujlwm lub voj voog) ua haujlwm.

---

Daim ntawv thov

Primary: Ua kom tiavYWZ / BYWZ series nres nresthiab nruas / disc nres rau kuv txoj siv conveyors, hoists, thiab tsheb thauj mus los hauv av.

Thib ob: Ua haujlwm li qub, ratchets, thiab levers hauv cov mines thee (nruab hauv cov chav ua haujlwm siab).

Kev lag luam: Mining, metallurgy, thiab cov khoom hnyav tuav nrog kev pheej hmoo tawg.

---

Installation & Kho

Kev teeb tsa:

Mount rau ntawm lub hauv paus nruj; ua kom lub pushrod nrog tus brake lever kom tsis txhob muaj cov loads sab nraud.

Siv cov ntaub ntawv pov thawj tawg- cov ntaub ntawv pov thawj thiab cov hauv av kom zoo; khaws flameproof nto huv si thiab tsis puas.

Sau nrog huv ISO VG 32/46 hydraulic roj mus rau qib cim; cua los ntshav ua ntej commissioning.

Kev tu:

Txhua hnub: Xyuas cov roj theem, cov dej ntws tawm, thiab lub suab nrov txawv txav; ntxuav qhov chaw thiab cov pa ua pa.

6 lub hlis: Tshawb xyuas cov roj zoo; hloov yog degraded/contaminated.

12 lub hlis: Overhaul seals, xyuas lub cev muaj zog rwb thaiv tsev (Ntau dua lossis sib npaug ntawm 2 MΩ), thiab txheeb xyuas qhov tsis sib xws ntawm cov nplaim taws.

Tsis txhob hloov cov khoom tiv thaiv flameproof los yog siv cov khoom tsis yog - pom zoo.

---

Common Faults & Fixes

txhaum	Ua Tau	Kho
Tsis muaj zog	Lub cev muaj zog thim rov qab, lim lim, lossis impeller puas	Kho lub cev muaj zog theem; hloov lim / impeller
Ua haujlwm qeeb	Qib roj tsawg, cua hauv qhov system, lossis hnav cov ntsaws ruaj ruaj	Roj rov qab; los ntshav; hloov cov ntsaws ruaj ruaj
Tsis ruaj tsis khov	Cov pob qij txha los yog daig nyem nyem valve	Tighten pob qij txha; ntxuav / hloov lub pob valve
Lub cev muaj zog overheating	Overload, voltage imbalance, los yog bearing hnav	Txo lub luag haujlwm lub voj voog; qhov tseeb voltage; hloov
