Electro Sib Nqus Nres
Crane brakes ua lub luag haujlwm tseem ceeb hauv cov nyiaj siv ua haujlwm cranes lossis gantry cranes. Nws yog tsuas yog tsim los ntawm tus nres nres, nres caj npab, nres lub log thiab nres tso tawm. Feem ntau ntsia rau ntawm lub siab ceev ncej ntawm lub crane, nws yog siv los decelerate thiab nres lub crane. ZWZ Series Electro Sib Nqus Nres Nres Basic ...
Hauj lwm lawm
Crane brakes ua lub luag haujlwm tseem ceeb hauv cov nyiaj siv ua haujlwm cranes lossis gantry cranes. Nws yog tsuas yog tsim los ntawm tus nres nres, nres caj npab, nres lub log thiab nres tso tawm. Feem ntau ntsia rau ntawm lub siab ceev ncej ntawm lub crane, nws yog siv los decelerate thiab nres lub crane.

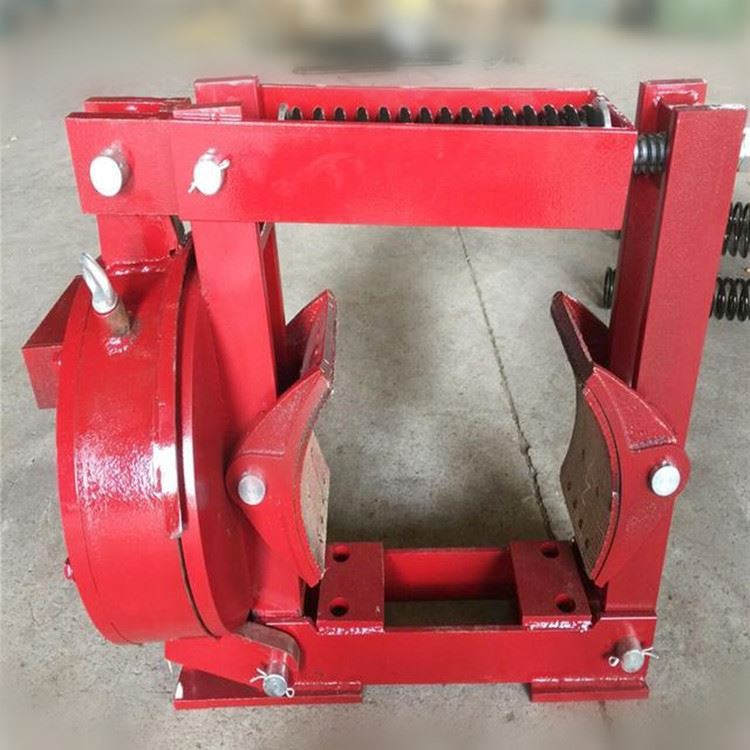

ZWZ Series Electro Sib Nqus Nres
Basic Parameters:
Qauv: ZWZA, ZWZB
Siv tau lub log txoj kab uas hla: 200 ~ 800mm
Braking torque: 32 ~ 10000Nm
Cov xwm txheej ua haujlwm:
ambient kub: -20 ° C ~ +40 ° C;
Kev txheeb ze av noo: ≤90%;
Kev ua haujlwm: tsis tu ncua (S1-100%) thiab tsis tu ncua (S3-25%, 40%, 60%, kev ua haujlwm zaus ≤ 720c / h) ua haujlwm;
Lub zog hluav taws xob: DC 110V, 220V;
Tsis muaj qhov cuam tshuam loj heev nruab nrab, roj av thiab cov hmoov av conductive txaus kom corrode hlau thiab rhuav tshem cov rwb thaiv tsev nyob rau hauv ib puag ncig ua haujlwm.
Nta DC electromagnetic nres
Kev tsim kho yog ruaj khov thiab yooj yim.
Txhim khu kev braking.
Hwj chim xa hluav taws xob.
Nres nkawm khau tuaj yeem hloov tsis tau disassembly.
Yooj yim khaws cia.
Yooj yim hloov torque.
Cov ntaub ntawv technical
Nres Hom | Hom hluav taws xob | Brake Torque (Nm) | Qhov hnyav tag nrho (KG) | |
JC 25% | JC 40% | |||
Shunt kauj | Shunt kauj | |||
ZWZA200-40 | MZZ1-100 | 40 | 32 | 1 |
ZWZA200-160 | MZZ1-200 | 160 | 128 | |
ZWZA300-250 | MZZ1-200 | 250 | 200 | 1.25 |
ZWZA300-500 | MZZ1-300 | 500 | 430 | |
ZWZB-160/100 | MZZ1-100 | 35.5 | 28 | 1 |
ZWZB-160/200 | MZZ1-200 | 140 | 112 | |
ZWZB-200/100 | MZZ1-100 | 40 | 31.5 | |
ZWB-200/200 | MZZ1-200 | 160 | 125 | |
ZWZB-200/300 | MZZ1-300 | 315 | 280 | |
ZWZB-250/200 | MZZ1-200 | 200 | 160 | 1.25 |
ZWZB-250/300 | MZZ1-300 | 450 | 355 | |
ZWZB-315/200 | MZZ1-200 | 250 | 200 | |
ZWZB-315/300 | MZZ1-300 | 500 | 450 | |
FAQ
Q: Koj puas yog lub tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom. Feem ntau tsim muaj kev lag luam nres.
Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A: 1 unit.
Q: Yog tias kuv xav tau cov lus qhia txog kev nres tsheb, koj yuav tsum paub dab tsi?
A: Feem ntau peb yuav tsum paub qhov loj me, ntsuas hluav taws xob, lub zog torque, thiab lwm yam.
Q: Koj puas tuaj yeem pab yog tias kuv tsis ua' tsis paub dab tsi txog kev nres tsheb?
A: Yog, peb zoo siab heev. Thov hu rau peb ncaj qha
Q: Koj qhov chaw thau khoom nyob qhov twg?
A: Tuam Tshoj Qingdao lossis Shanghai, raws li koj qhov kev thov.
Yog tias koj xav tau cov ntaub ntawv ntxaws ntxaws, thov hu rau Zhongyuan Brake, peb tuaj yeem tsim ntau yam tsis yog tus qauv nres rau cov neeg siv.
Cim npe nrov: electromagnetic nres, Tuam Tshoj, manufacturers, tsum, hoobkas, customized
