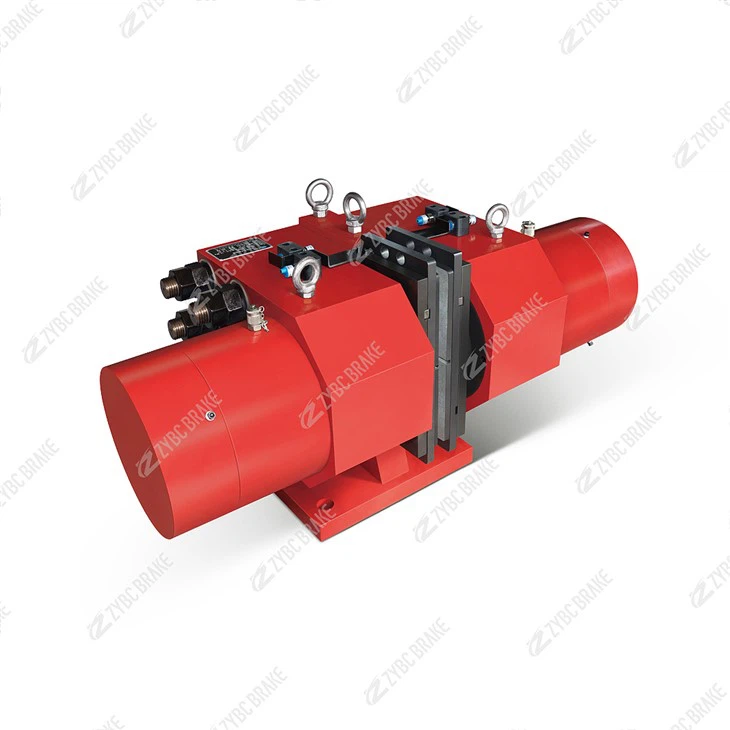

SB315 Kev nyab xeeb nres

SB315 yog a315 kN clamping quab yuam, feem ntau kaw tsis ua haujlwm -kev nyab xeeb hydraulic disc nres(caij nplooj ntoos hlav- siv, hydraulically tso tawm), engineered rau kev nyab xeeb thaum muaj xwm ceev braking ntawm qis- ceev shafts ntawm hnyav industrial khoom xws li cranes, hoists, thiab mining conveyors, nrog interlocking kev nyab xeeb keyboards thiab ruaj khov uas tsis yog -asbestos kev sib txhuam hauv ob sab phlu.

---

Core Specifications

Parameter	Tus nqi
Clamping quab yuam	315kn ua
Nres hom	Nquag kaw, caij nplooj ntoos hlav- siv, hydraulically tso tawm disc nres
Siv tau disc txoj kab uas hla	Ntau dua lossis sib npaug li 1800 mm (tus qauv)
Disc thickness	25-40mm (tus qauv)
Kev khiav hauj lwm siab	16-21 MPa
Lub sijhawm teb (kaw)	Tsawg dua los yog sib npaug li 0.8 s
Kev sib txhuam hauv ob sab phlu	Tsis yog -asbestos tawv khoom, ruaj khov μ ≈ 0.4
Kev tiv thaiv	IP65 (kev tsim qauv tsim)
Ambient temp	-20℃rau +60 degree
Qhov hnyav	280-320 Kg
Kev nyab xeeb hloov	Tso tawm txwv + hauv ob sab phlu hnav txwv (PLC-interlockable)

---

Qauv & Txoj Cai Ua Haujlwm

Qauv: Symmetric ob- caliper tsim nrog disc springs, hydraulic kheej kheej, piston sib dhos, nres khau, thiab kev nyab xeeb hloov; siv cov ntsaws ruaj ruaj rau lub neej ntev.

Ua tsis tiav -Kev Ua Haujlwm Zoo:

Fais fab-on (siab siv): Cov roj hydraulic thawb pistons sab nraud, compressing disc springs kom thim khau thiab tso tus nres.

Fais fab-tawm (siab poob): Disc springs nthuav, thawb khau tawm tsam disc kom koom nrog tus nres.

Kev nyab xeeb hloov teeb liab nres raws li txoj cai thiab hauv ob sab phlu rau kev tiv thaiv interlock.

---

Qhov Zoo Tshaj Plaws

Ua tsis tiav -kev ntseeg ruaj ntseg: Nquag kaw tsim kom muaj kev sib tsoo yog tias lub zog / hydraulic tsis ua haujlwm.

Kev ua haujlwm siab: Kev sib txhuam coefficient; dej/ ntsev tsuag- cov ntaub ntawv tsis hnov ​​​​tsw rau qhov chaw hnyav.

Ntse kev nyab xeeb: Ua tau - nyob rau hauv txwv hloov pauv tau tiag tiag - lub sijhawm saib xyuas thiab PLC cuam tshuam.

Lub sealing ruaj khov: Hwm cov ntsaws ruaj ruaj txo cov dej xau thiab txuas ntxiv lub neej kev pab cuam.

Kev saib xyuas yooj yim: Modular tsim tso cai rau hauv ob sab phlu hloov ceev thiab hloov kho.

---

Daim ntawv thov

Qhov Tseem Ceeb: Kev nyab xeeb thaum muaj xwm txheej ceev rau qis - nrawm nrawm ntawm cov cranes loj / nruab nrab, chaw nres nkoj tuav cov tshuab, thiab cov hoists mining.

Secondary: Ua hauj lwm / thaum muaj xwm ceev braking rau inclined siv conveyors, cable cranes, thiab hnyav khoom tuav systems nyob rau hauv hnyav industrial chaw.

---

Installation & Kho

Kev teeb tsa:

Mount rau ntawm lub hauv paus nruj; xyuas kom disc concentricity (runout Tsawg dua los yog sib npaug rau 0.15 mm) thiab parallelism nrog nres khau.

Siv cov hydraulic hoses thiab fittings kom zoo; los ntshav los ntawm lub system ua ntej commissioning.

Txuas kev ruaj ntseg hloov mus rau lub kaw lus tswj kev tiv thaiv kev cuam tshuam.

Kev tu:

Txhua hnub: Tshawb xyuas hydraulic siab, xau, thiab hloov raws li txoj cai; huv si saum npoo thiab cua ua pa.

3 lub hlis: Tshawb xyuas cov roj zoo; hloov yog tias muaj kab mob.

6 lub hlis: Txheeb xyuas cov thickness (hloov yog <5 hli); txheeb xyuas qhov ruaj khov.

12 lub hlis: Overhaul lub tog raj kheej; check disc nto rau hnav; calibrate kev ruaj ntseg keyboards.

Tsis txhob hloov kev nyab xeeb- cov khoom muaj feem xyuam; siv cov khoom qub qub.

---

Common Faults & Fixes

txhaum	Ua Tau	Kho
Tsis muaj zog braking	Hnav cov hnab looj tes, lub caij nplooj ntoos hlav qis, lossis hydraulic to	Hloov cov ntaub ntawv; kho springs; kho cov ntsaws ruaj ruaj
Nres yuav tsis tso	Tsawg hydraulic siab, daig piston, lossis misalignment	Tshawb xyuas lub siab; huv si piston; realigned calipers
Tsis ruaj khov torque	Tsis sib xws disc hnav, caij nplooj ntoos hlav qaug zog, los yog cov roj paug	Resurface disc; hloov cov springs; hloov roj
Hloov tsis ua haujlwm	Cov kab hluav taws xob puas, kev sib txuas tsis raug, lossis cov hloov pauv tsis raug	Kho cov hlua; nruj kev sib txuas; hloov cov keyboards

---

Kev Nyab Xeeb & Kev Ua Raws Cai

Ua raws li ISO 9001, GB / T 18153-2012, thiab cov qauv kev nyab xeeb muaj feem xyuam.

Ua raws li kev kaw haujlwm -tagout (LOTO) cov txheej txheem thaum kho kom tiv thaiv kev ua kom yuam kev.

Tsis tu ncua kuaj kev nyab xeeb keyboards thiab interlocks los xyuas kom meej muaj nuj nqi.
