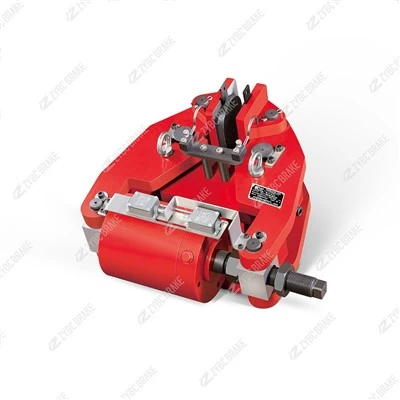

SBD315-A Safety Nres

SBD315-A yog ib315 kN clamping quab yuam, ib txwm kaw, caij nplooj ntoos hlav-applied, hydraulically tso hydraulic disc kev nyab xeeb nres-cov cuab yeej tsis muaj kev nyab xeeb rau cov ncej qis qis ntawm cov khoom siv hnyav xws li cranes, mining hoists, thiab inclined conveyors, nrog ruaj khov tsis muaj asbestos kev sib txhuam hauv ob sab phlu thiab xaiv kev nyab xeeb kev sib cuam tshuam.

---

Core Specifications

Parameter	Tus nqi
Clamping quab yuam	315kn ua
Nres hom	Nquag kaw, lub caij nplooj ntoos hlav-thov, hydraulically tso tawm disc nres
Siv tau disc txoj kab uas hla	1600-1800mm (zoo)
Disc thickness	25-30 hli
Kev khiav hauj lwm siab	16-21 MPa
Tso kev tshem tawm	0.75-1.25 hli
Lub sijhawm teb (kaw)	Tsawg dua los yog sib npaug li 0.8 s
Kev sib txhuam hauv ob sab phlu	Cov khoom siv tsis-asbestos nyuaj, μ ≈ 0.36
Kev tiv thaiv	IP65
Ambient temp	-20℃rau +60 degree
Qhov hnyav	235-280 Kg
Kev nyab xeeb hloov	Kev xaiv tso tawm txwv + hauv ob sab phlu hnav txwv (PLC-interlockable)

---

Qauv & Txoj Cai Ua Haujlwm

Qauv: Symmetric ob-caliper tsim nrog disc springs, hydraulic kheej kheej, piston sib dhos, nres khau, thiab xaiv kev nyab xeeb hloov; siv cov ntsaws ruaj ruaj rau lub neej ntev.

Fail-Safe Operation:

Lub hwj chim-on (lub siab siv): Cov roj hydraulic thawb pistons sab nraud, compressing disc springs kom thim khau thiab tso tus nres.

Fais fab-tawm (siab poob): Disc springs nthuav, thawb khau tiv thaiv lub disc kom koom nrog tus nres.

Kev nyab xeeb hloov teeb liab nres raws li txoj cai thiab hauv ob sab phlu rau kev tiv thaiv interlock.

---

Qhov Zoo Tshaj Plaws

Fail-safe kev ntseeg: Nquag kaw tsim kom muaj kev sib tsoo yog tias lub zog / hydraulic tsis ua haujlwm.

Kev ua haujlwm siab: Kev sib txhuam coefficient; dej / ntsev tsuag-insensitive hauv ob sab phlu rau ib puag ncig hnyav.

Ntse kev nyab xeeb: Cov kev xaiv txwv tsis pub hloov pauv kom saib xyuas lub sijhawm tiag tiag thiab PLC cuam tshuam.

Lub sealing ruaj khov: Hwm cov ntsaws ruaj ruaj txo cov dej xau thiab txuas ntxiv lub neej kev pab cuam.

Kev saib xyuas yooj yim: Modular tsim tso cai rau hauv ob sab phlu hloov ceev thiab hloov kho.

---

Daim ntawv thov

Qhov Tseem Ceeb: Kev ruaj ntseg thaum muaj xwm txheej ceev rau cov ncej qis ntawm cov cranes loj / nruab nrab, chaw nres nkoj tuav cov tshuab, thiab mining hoists.

Secondary: Ua hauj lwm / thaum muaj xwm ceev braking rau inclined siv conveyors, cable cranes, thiab hnyav khoom tuav systems nyob rau hauv hnyav industrial chaw.

---

Installation & Kho

Kev teeb tsa:

Mount rau ntawm lub hauv paus nruj; xyuas kom disc concentricity (runout Tsawg dua los yog sib npaug rau 0.15 mm) thiab parallelism nrog nres khau.

Siv cov hydraulic hoses thiab fittings kom zoo; los ntshav los ntawm lub system ua ntej commissioning.

Txuas kev ruaj ntseg hloov mus rau lub kaw lus tswj kev tiv thaiv kev cuam tshuam.

Kev tu:

Txhua hnub: Tshawb xyuas hydraulic siab, xau, thiab hloov raws li txoj cai; huv si saum npoo thiab cua ua pa.

3 lub hlis: Tshawb xyuas cov roj zoo; hloov yog tias muaj kab mob.

6 lub hlis: Txheeb xyuas cov thickness (hloov yog <5 hli); txheeb xyuas qhov ruaj khov.

12 lub hlis: Overhaul lub tog raj kheej; check disc nto rau hnav; calibrate kev ruaj ntseg keyboards.

2 xyoos: Tshawb xyuas disc caij nplooj ntoos hlav elasticity (hloov yog tias nkees); ua ib qho kev ntsuas tag nrho ntawm lub kaw lus siab (siab poob qis dua lossis sib npaug ntawm 0.5 MPa hauv 10 feeb); hloov tag nrho cov hydraulic hoses.

Tsis txhob hloov cov khoom muaj feem xyuam nrog kev nyab xeeb; siv cov khoom qub qub.
